标题：Highly Emissive Quasi-2D Perovskites Enabled by a Multifunctional Molecule for Bright Light-Emitting Diodes
作者：Dongyang Shen1, Zhenwei Ren1,*, Qinyi Li1, Chengzhao Luo1, Wenlin Xia1, Zhishuai Zheng1, Wenchen Ma1, Jie Li1, and Yu Chen1,2,*
1 School of Optoelectronic Science and Engineering & Collaborative Innovation Center of Suzhou Nano Science and Technology, Soochow University, Suzhou 215006, China
2 National University of Singapore Suzhou Research Institute, Dushu Lake Science and Education Innovation District, Suzhou 215123, China

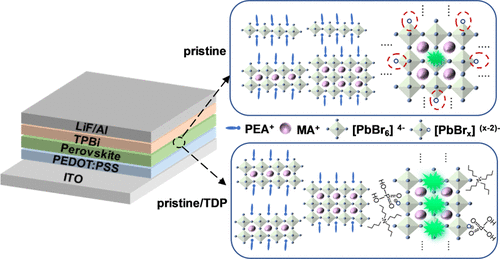

摘要：Quasi-two-dimensional (quasi-2D) perovskite has exhibited great potential to be an ideal luminescent material for perovskite light-emitting diodes (PeLEDs). However, the low-order phases (especially n = 1 phase) and the inevitable defects result in massive nonradiative recombination and poor emission efficiency. Herein, a multifunctional molecule of tetrabutylammonium dihydrogen phosphate (TDP) is introduced to simultaneously suppress the low-n phase, passivate the defects, and increase the exciton binding energy of the quasi-2D perovskite for massive radiative recombination and thus high emission efficiency. The multifunctional roles of TDP are realized by the synergistic effects of tetrabutylammonium cation and dihydrogen phosphate anion, both of which show strong interaction with the lead bromide octahedron of the perovskite. As a result, the TDP-incorporated perovskite films show a great enhancement of the emission efficiency with a remarkable increase in photoluminescence quantum yield (PLQY) from 34.6 to 96.9% at the wavelength of 522 nm. The strengthened radiative recombination promotes efficient emission efficiency with over 2.5-fold improvement in external quantum efficiency (EQE) and current efficiency (CE) from 3.27% and 10.83 cd A–1 to 9.25% and 28.35 cd A–1, respectively, as well as high brightness with over 37% enhancement from 12713 to 17536 cd m–2. Consequently, this work contributes to an efficient approach to employ a multifunctional molecule for highly emissive quasi-2D perovskites and enhanced quasi-2D PeLED performances.
